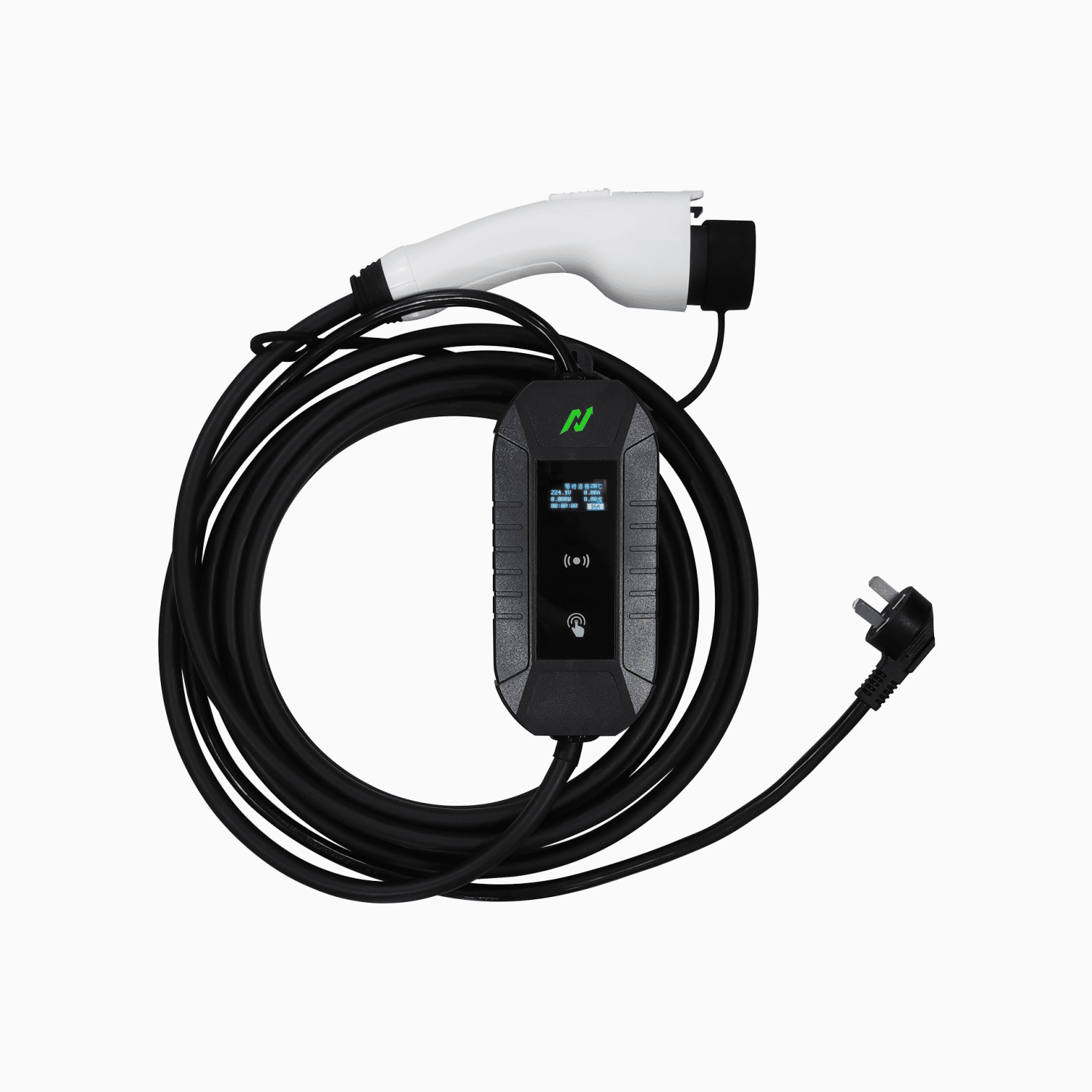

Portable EV Charger- 3.5kW
Portable EV Charger is a compact AC Charging station for use at homes, offices and other residential locations for personal use only. Its system is simple and featured with small footprint, convenient handling and easy operation.
Features
- Compact design
- 5 kW slow charging available.
- Robust, all weather enclosure for indoor and outdoor use: IP54 No Need to Install or fix at any location.
- Daylight readable display screen for parameters only. Compatible with Type-2 Vehicles
- Plug-in and automatic start functionality. EV Standard: IEC 62196, IEC 61851
Technical Specifications
Input Power
| Input Voltage (AC) | 230 VAC +10% or -6%, 50Hz |
|---|---|
| Number of Outputs | 1 Nos. |
| Wires | 3 Wire,L,N,PE |
Output Power
| Output Connector | IEC 62196, Type 2 |
|---|---|
| Output Rating | 230 VAC, Max.16 Amp. |
| Operating Temperature | -30 °C to 50 °C |
Environment
| Cooling Method | Natural Cooling |
|---|---|
| Humidity | 5% to 95%,non-condensing |
| Display Screen | LCD Screen |
User Interference and Control functions
| Languages- Supported | English |
|---|---|
| Visual Indication | Using LED and Screen |
| User Authentication | Plug and Charge |
Protection
| Protection | Over Voltage, Under Voltage, Over Temperature, Ground Fault Protection, Over Load Protection, Leakage and Lightning Protection |
|---|
Communication
| Charger and Vehicle | IEC 62196, IEC 61851 |
|---|---|
| Ingress Protection | Indoor & Outdoor |
Mechanical
| IP Rating | IP 54 |
|---|
