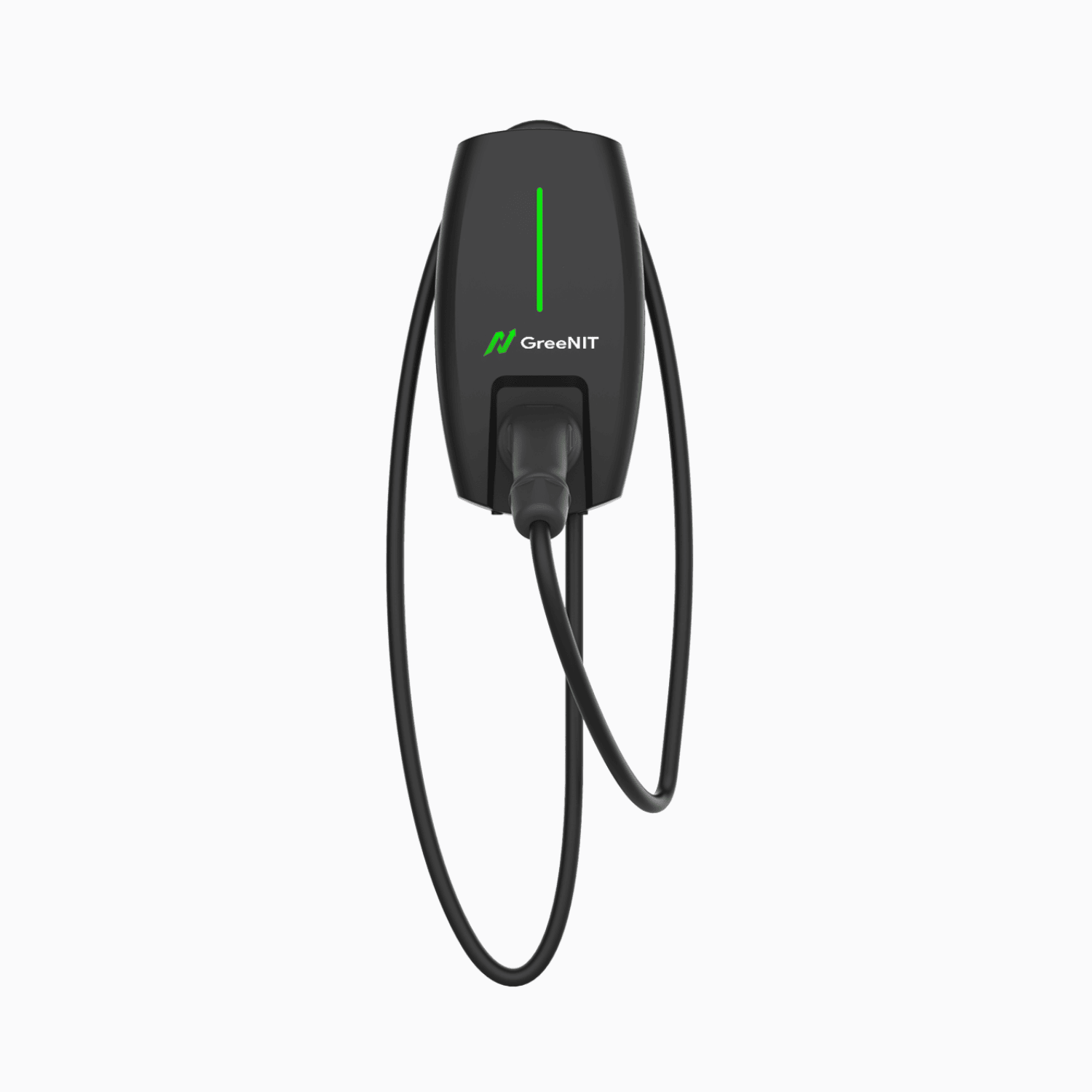

AC Wallbox Charger- 7kWAC
Wallbox 7 kW is a compact AC Charging station for use at homes, offices and other residential and commercial locations. Its system is simple and featured with small footprint, convenient installation and easy operation.
Features
- Compact design
- 7 kW fast charging available.
- Robust, all weather enclosure for indoor and outdoor use: IP54
- Easy to install or retrofitted in various locations.
- Daylight readable 4.3” full colour touchscreen display. Compatible with Open Charge Point Protocol (OCPP). APP Scan Code / RFID Card Charging.
- EV Standard: IEC 62196, IEC 61851.
Technical Specifications
Input Power
| Input Voltage (AC) | 230 VAC +10% or -6%, 50Hz |
|---|---|
| Number of Outputs | 1 Nos. |
| Wires | 3 Wire,L,N,PE |
Output Power
| Output Connector | IEC 62196, Type 2 |
|---|---|
| Output Rating | 230 VAC, Max.32 Amp. |
| Ambient Temperature | 0° C to 55 ° C |
| Storage Temperature | 0° C to 60 ° C |
Environment
| Altitude | < 2000 mtr |
|---|---|
| Humidity | 5% to 95%,non-condensing |
| Display Screen | 4.3″/5″ Screen with or without keyboard |
| Languages- Supported | English |
User Interference and Control functions
| Push Button | Emergency Stop |
|---|---|
| Visual Indication | Using LED |
| User Authentication | Using mobile application or User Interface (OCPP gives only a field mandate, media to be used is open) / QR Code / RFID Card / Password Login Over Voltage, Under Voltage, Over Current, Short Circuit, Surge Protection, Over Temperature, Ground Fault Protection, Residual Current, Emergency shutdown with alarm, Protection against |
Protection
| Protection | Electric shock |
|---|---|
| Charger and Vehicle | IEC 62196, IEC 61851 |
Communication
| Charger and CMS | OCPP v1.6 or above – 10/100 Base-T Ethernet (Standard) or Optical GSM Modem (2G/3G/4G) and Wireless (Optional) |
|---|
Mechanical
| Ingress Protection | Indoor & Outdoor |
|---|---|
| IP Rating | IP 54 |
